Transcription Factor Binding Site (TFBS) Prediction#

This module predicts Transcription Factor Binding Sites (TFBSs) around genes and displays the results inside plantiSMASH cluster pages. It uses curated motif matrices (from PlantTFDB) and the MOODS scanner for fast, strand-aware motif search on DNA.

Method overview#

  1. Motif library
    A JSON file provides a set of TFBS profiles (one per TF) as 4×N matrices (A,C,G,T by position) and metadata (name, species, PlantTFDB link, consensus, min/max score).

  2. Where we scan
    For each CDS in the contig, we take a window centered on the transcription start site (TSS):

  3. + strand CDS: TSS = CDS.start

  4. − strand CDS: TSS = CDS.end - 1
    A half-window W is applied on both sides, i.e. [TSS − W, TSS + W].
    (In cluster pages, only CDS that overlap the cluster are reported.)

  5. How we scan
    Each window is scanned on both strands with MOODS using a motif-specific score threshold derived from a user-supplied p-value. Background nucleotide frequencies are estimated from the scanned window and assumed symmetric (A=T and C=G).

  6. Hit filtering and reporting
    MOODS returns all hits scoring above the per-motif threshold. Hits are then:

  7. collected per CDS window,
  8. reported with position, strand, distance to TSS, score,
  9. aggregated per CDS (unique motif names and hit counts).

MOODS-based scanning#

We rely on MOODS for exact, high-performance scanning:

  • Matrix type: the module accepts PFMs or log-odds matrices. If any value is negative, the matrix is treated as log-odds; otherwise it is treated as a PFM and converted to log-odds with MOODS, using the window’s background distribution and a small pseudocount.
  • Thresholds from p-value: for each motif, MOODS computes a score threshold thr such that random hits exceed thr with probability p under the background model.
  • Strands: both forward and reverse-complement strands are scanned. Reverse hits are reported in forward coordinates.

Confidence labels (Weak / Medium / Strong)#

Each hit is labeled by comparing its score to per-motif min/max score statistics from the JSON:

  • Weak: score ≤ min_score
  • Strong: score ≥ (min_score + max_score)/2
  • Medium: otherwise

These labels are not the p-value; they bucket scores relative to each motif’s observed score range. If you curate min_score/max_score, labels will track your expectations.

Input matrix format (JSON)#

The file contains a top-level dictionary keyed by motif/TF name:

{
  "AT1G28300": {
    "name": "AT1G28300",
    "description": "Unknown transcription factor",
    "species": "Arabidopsis thaliana",
    "link": "https://planttfdb.gao-lab.org/tf.php?sp=Ath&did=AT1G28300.1",
    "consensus": "ATGCATGC",
    "max_score": 7.6068,
    "min_score": 0.0214,
    "pwm": [
      [0.661184, 0.002475, ...],   // A row, length = motif length
      [0.332237, 0.002475, ...],   // C row
      [0.003289, 0.002475, ...],   // G row
      [0.003289, 0.992574, ...]    // T row
    ]
  }
}

Notes - pwm can be PFM (non-negative, typically columns sum to ~1) or log-odds (can contain negatives). The module auto-detects. - min_score and max_score are used only for confidence labels. - link is shown in the HTML output (motif names become links). Legacy http://planttfdb.cbi.pku.edu.cn/... links are automatically mapped to https://planttfdb.gao-lab.org/....

Parameters & CLI usage#

Enable TFBS scanning and control sensitivity from the plantiSMASH CLI:

python run_antismash.py \
  --tfbs-detection \
  --tfbs-pvalue 1e-4 \
  --tfbs-range 500 \
  --taxon plants \
  --outputfolder results/my_run \
  my_sequences.gbff

Arguments

--tfbs-detection Turn on the TFBS module.

--tfbs-pvalue FLOAT Per-motif p-value used by MOODS to derive scan thresholds (e.g., 1e-4).

--tfbs-range INT Half-window size (bp) around each CDS TSS to scan (e.g., 500 scans [TSS−500, TSS+500]).

Example in this documentation The A. thaliana results shown here were generated with p = 0.0001 and ±500 bp.

Output#

This module adds a “Transcription factor binding sites (±W bp)” panel to each cluster page with two data tables:

  1. Motifs per CDS (aggregated)
    Summarizes which motifs occur within the window around each CDS TSS.
  2. CDS: gene label (from locus_tag, gene, or protein_id)
  3. CDS strand: orientation of the gene (+/−)
  4. TSS: coordinate used as transcription start site (TSS)
  5. Window: displayed portion of the scanned interval (clipped to cluster bounds)
  6. Motifs: unique TF motif names found in the window
  7. #Hits: total number of motif matches across those motifs

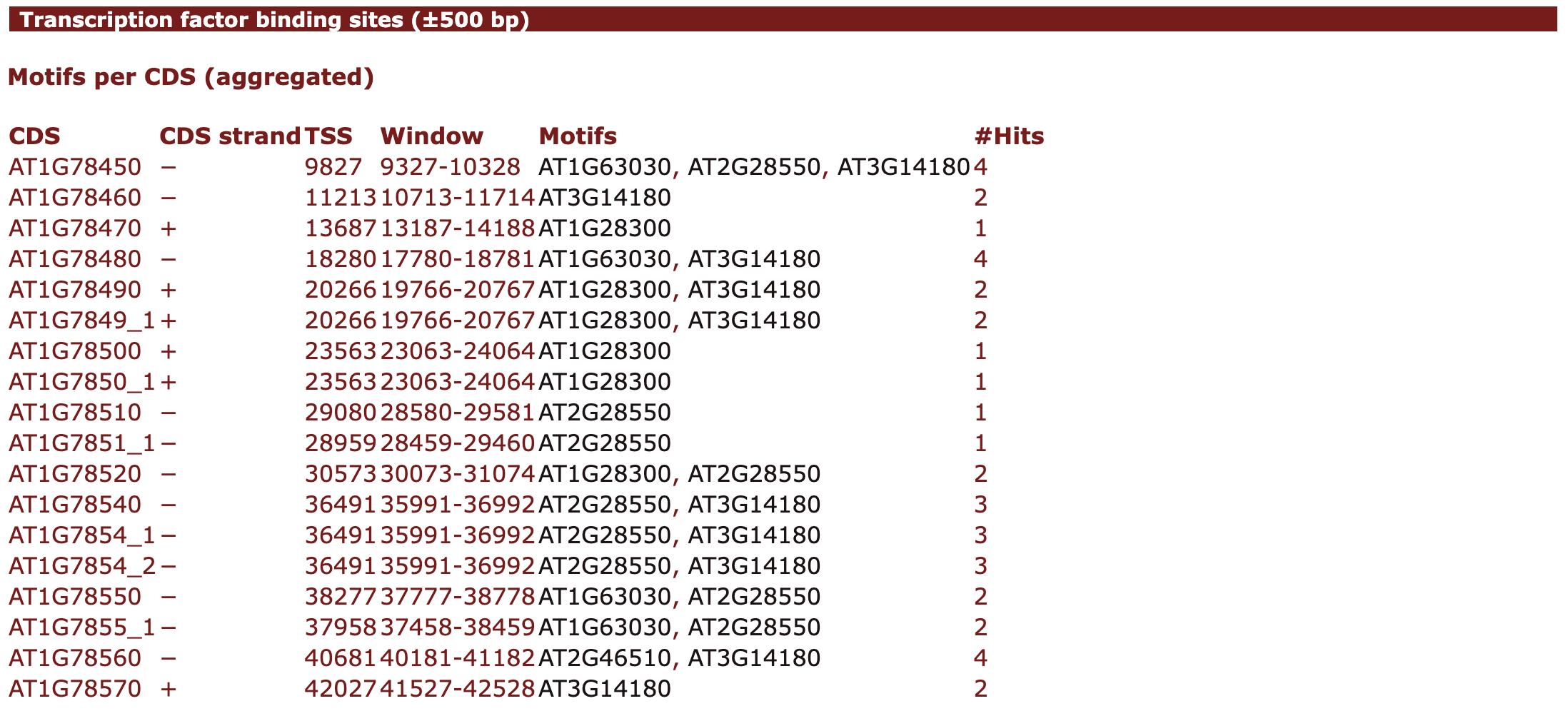

Motifs per CDS

  1. TFBS hits per CDS (within ±window)
    Full list of individual hits that pass the MOODS threshold.
  2. CDS / CDS strand / TSS / Window: as above
  3. Motif: clickable motif name that links to the corresponding PlantTFDB TF page
  4. Hit start: genomic start (forward axis) of the match
  5. Hit strand: strand of the match (+/−)
  6. Distance to TSS: signed distance (negative = upstream, positive = downstream)
  7. Score: MOODS match score along with the motif’s max_score (for context)
  8. Confidence: Weak / Medium / Strong (label derived from per-motif min/threshold/max; see “Confidence labels”)

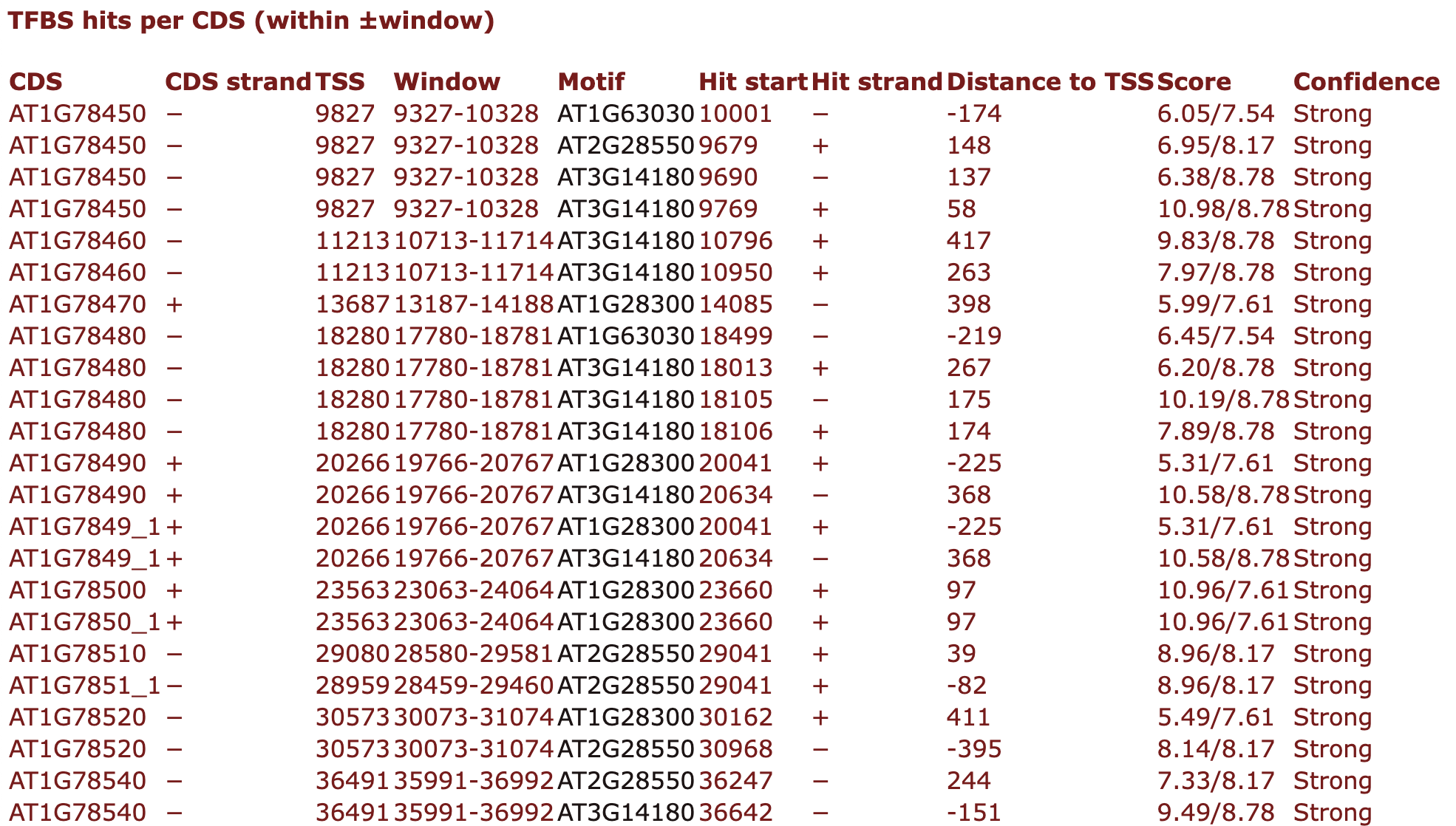

TFBS list

Example settings for the screenshots in this documentation
Species: A. thaliana — p-value = 0.0001, scan window = ±500 bp around each CDS TSS.

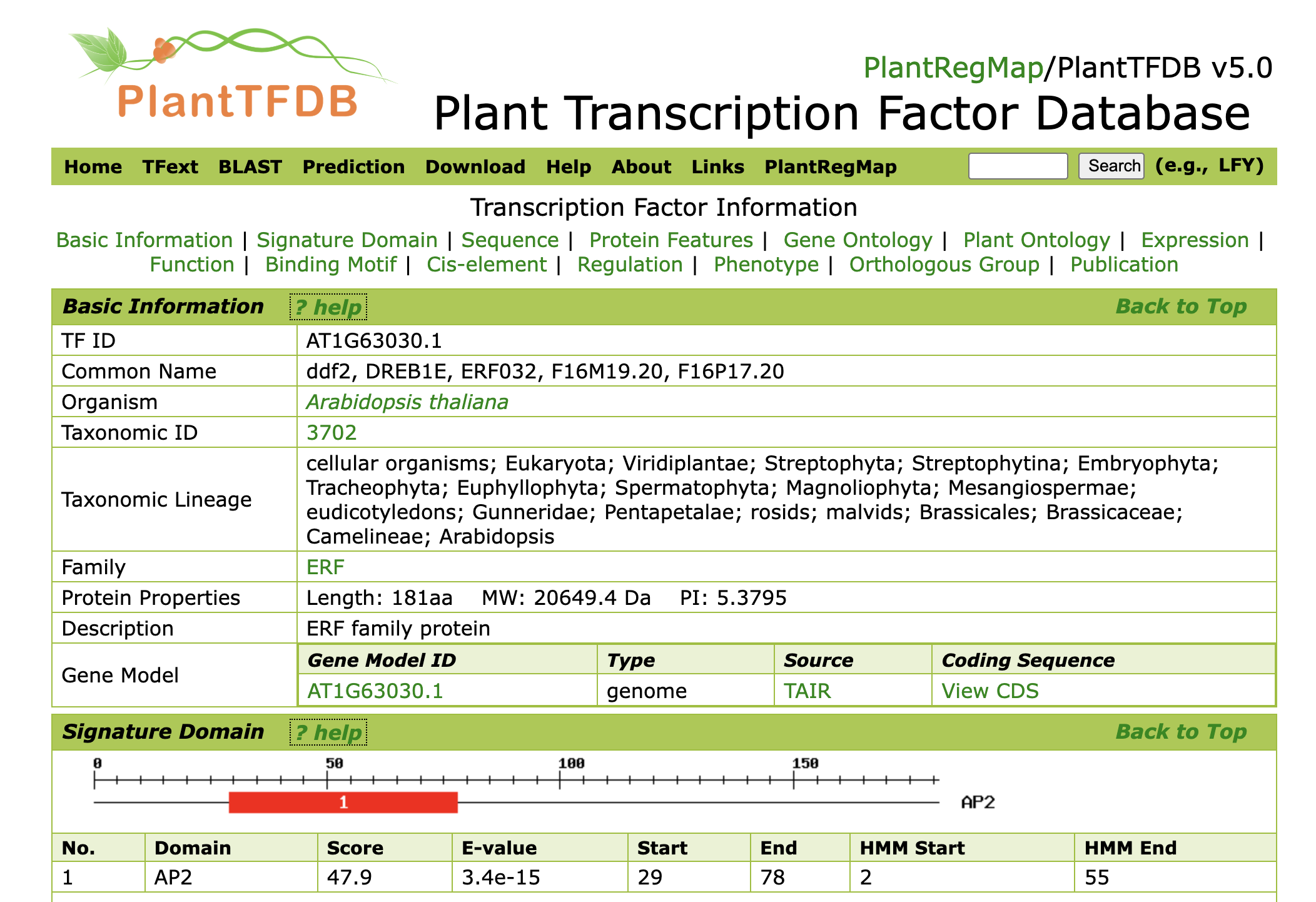

Hits are linked to PlantTFDB

PlantTFBS link

Customization#

Use your own motif library#

You can run the TFBS Finder with any set of motifs as long as they follow the expected JSON format (4×N A/C/G/T rows per motif plus metadata).

  1. Create a JSON file in the same format as the bundled library (see “Input matrix format” above).
  2. Place the file in antismash/generic_modules/tfbs_finder/data/.
  3. Point the module to it by updating the path in:
# antismash/generic_modules/tfbs_finder/tfbs_detection.py
PWM_PATH = utils.get_full_path(__file__, os.path.join("data", "MY_MOTIFS.json"))

Tips#

If your matrices are PFMs (non-negative, columns ≈ sum to 1), the module will convert them to log-odds using MOODS and the local background of each scanned window.

If your matrices are already log-odds (may include negatives), they’ll be used as-is.

The confidence labels (Weak/Medium/Strong) depend on the min_score and max_score values you provide per motif; adjust them to suit your library.

Known limitations#

Confidence labels are heuristic and rely on the min_score/max_score ranges supplied in the JSON. If your PFMs are transformed to log-odds, you may wish to re-estimate these bounds for clearer labeling.

The motif library path is configured in code (PWM_PATH). If you need to switch libraries at runtime, consider adding a small CLI option to pass a custom JSON path.
